Robotics Battery Pack — AGV · Humanoid · Quadruped
From design to charging — a power solution built around your robot
Battery pack, BMS, power conversion and charging — integrated into a single product.
Core Competencies
Six engineering capabilities in one pack
Custom integrated design
Battery pack, BMS and power conversion designed together to suit the installation environment.
High density · light weight
High-density, lightweight module configuration for robot drive efficiency.
Integrated charging solution
Charging is designed in too — DC-DC, wireless or on-board charging to match the operating environment.
Precise data output
Voltage, current, temperature, SoC, SoH and cycle count are output over CAN / RS485.
Hot-swap operation
Hot-swap design that minimizes downtime during pack changes.
Certification support
We support domestic and overseas certifications including KC, IEC, UN38.3, MSDS and UL.
Specification
Specifications

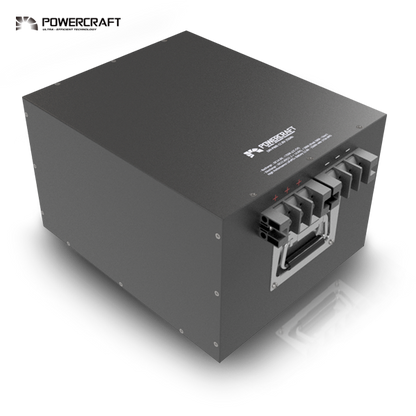

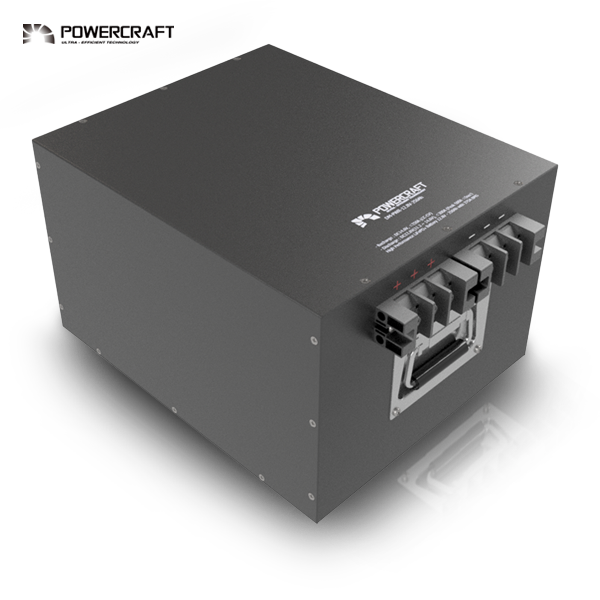

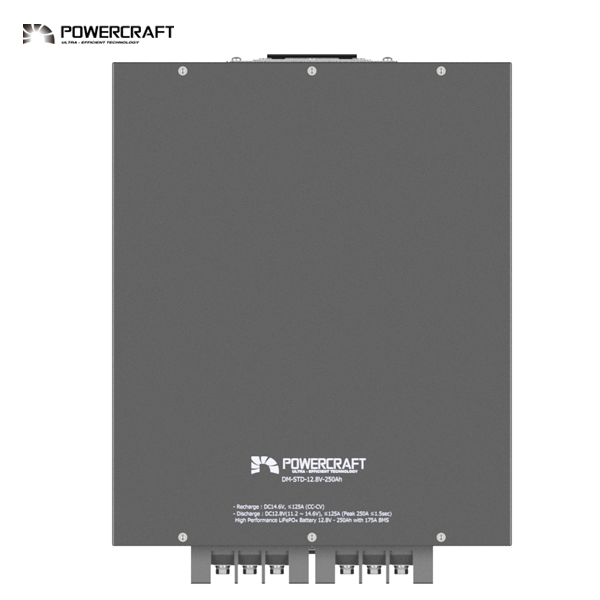

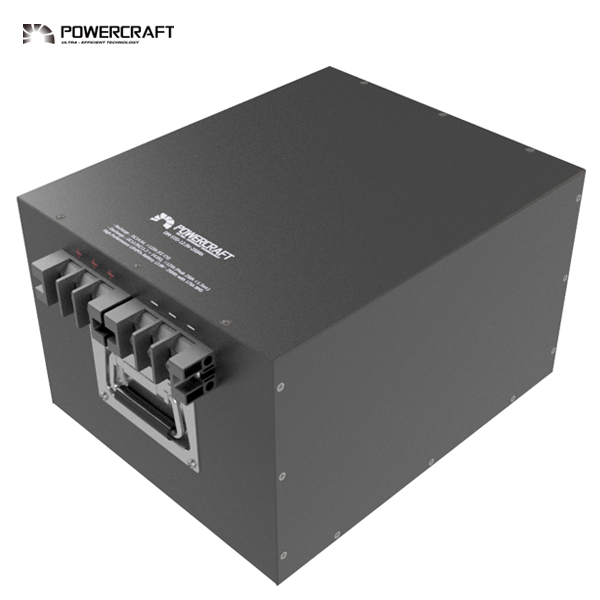

| Product Code | DM-STD-12.8V-300Ah |
|---|
| 모델명 (Model) | DM-STD-12.8V-300Ah (표준형) |
|---|---|
| 크기 (Dimension) | 약 L410.55 x W310 x H227mm (돌출부 포함) 약 L375 x W310 x H227mm (돌출부 제외) |
| 무게 (Weight) | 약 40kg |
| 전지 형식 (Battery Type) | 4S LiFePO4 |
|---|---|
| 공칭 전압 (Nominal Voltage) | 12.8V (11.2~14.6V) |
| 공칭 용량 (Nominal Capacity) | 300Ah |
| 에너지 (Energy) | 3,840Wh |
| 연속 최대 출력 (Continuous Max Power) | 1,920W |
| 충전 방식 (Charging Method) | CC-CV (Constant Voltage with Limited Current) |
| 표준 충전 조건 (0.2C) | 14.6V±1%, 60A, CC-CV End Current : 6A (0.02C) |
| 최대 충전 조건 | 14.6V±1%, 150A, CC-CV End Current : 6A (0.02C) |
| 표준 방전 전류 (0.2C) | 60A |
| 최대 방전 전류 | 150A |
| 순시 방전 전류 | 300A @ ≤1.5s 600A @ ≤0.005s |
| 방전 종지 전압 (Cut-off) | 11.2V (2.8V per cell) |
| 온도 범위 | 충전 시 : 0 ~ +45°C 방전 시 : -20 ~ +55°C 보관 시 적정온도 : +5 ~ +30°C |
|---|---|
| 배터리 관리 장치 (BMS) | 모듈 구성 : 6P 과충전차단 : 3.70~3.90V±25mV per cell 과충전복귀 : 3.50~3.80V±50mV per cell 과방전차단 : 2.00~2.50V±80mV per cell 과방전복귀 : 2.40~2.90V±100mV per cell 과전류차단 : 70~90A±25% per module 단락보호 : 있음 고온차단 : 있음 셀발란싱(균등화) : 있음 제어방식 : MOSFET |
| 보관 수명 (Storage Life) | 무부하 조건에서 최대 6개월충전량 조건 : SOC 50% 환경 조건 : 외기온도 25°C, 습도 70% 이하 |
| 충 · 방전 수명 (Cycle Life) | 2,500cycle 사용 후 → 공칭용량의 ≥60% 충·방전 조건 : 표준 충전 후 방전 종지 전압까지 표준 방전 전류로 방전 환경 조건 : 외기온도 25°C, 습도 70% 이하 |
| 단자 구성 | Positive(+) : 3P(+++) Negative(-) : 3P(---) |
|---|---|
| 단자 사양 | 정격(Rating) : 600V, 100A (핀당) 사용온도범위 : -40°C ~ +85°C |
| 체결 · 결선 | 볼트(BOLT) : SCREW M6X16 너트(NUT) 구조 : M6*P1.0(B5.0) |
| 충방전 스위치 (ON/OFF) | 기본 : 없음 (상시 출력) 옵션 : 충방전 로커스위치 (ON/OFF) |
Features
Product overview
Designed from a real-world operating perspective — from a layout that understands the robot's installation environment through to safety, communication and operation.
01
Custom design that accounts for the battery bay
A custom form factor and mounting method
designed around the robot's space and structure.
02
Multi-layer safety BMS + certification support
Our BMS with multiple protection devices strengthens safety,
and we support KC, IEC, UN38.3, MSDS and UL certification.
03
A charging system matched to your environment
DC-DC, wireless charging, regenerative braking and more —
we design the charging system in to suit how you operate.
04
Precise data output and communication
Voltage, current, temperature, SoC, SoH and cycle count are output in real time,
enabling condition management and prevention of safety incidents.
05
Hot-swap + storage and standby management
Storage and standby management modes, plus a hot-swap solution
that minimizes downtime during pack changes.
06
High-density, lightweight module configuration
Genuine cells are modularized systematically
to raise drive efficiency while minimizing weight.
FAQ
Frequently asked questions
Not sure which product to choose?
Send us the drive specification and operating conditions of your robot and our engineers will recommend the most suitable specification.
What do you need from us for a custom-build inquiry?
Let us know the application (robot type), the required voltage, capacity and peak current, the communication method, and the external dimensions, and we can begin the consultation.
Can the battery pack and the charging solution be designed together?
Yes. DC-DC, wireless charging, on-board charging and other approaches can be integrated into a single product to match how you operate.
How far does data monitoring and communication go?
Real-time output of voltage, current, temperature, SoC, SoH and cycle count is included as standard. For anything beyond that, please contact us.
Which certifications do you support?
We can support domestic and overseas testing and certification including KC, IEC, UN38.3, MSDS, UL and IP.
Get a Quote
We design the power solution that fits your robot
Send us your requirement specification and our engineers will propose the optimal configuration.
